Setup instructions for MT80, MT88, MVT100, MVT340, MVT380 and MVT600

1. If you are not registered yet, make your web registration here.

2. Add new device from device settings page (Settings->Devices)

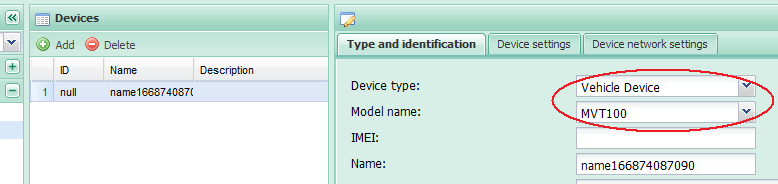

3. Select the right device type and model which you have.

For the rest install steps you will need cell phone or any PC tool for SMS sending.

4. Reset all device parameters (except the password). Send the command with SMS to the phone number which have the SIM card inserted in your device.
Command: F11
Example: 0000,F11
The device will then reply an SMS (‘011691002087602,F11,OK’) to confirm this setting.

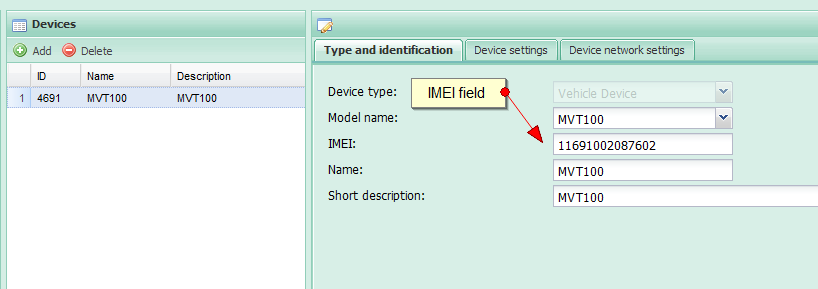

First digit of the returned SMS is the device IMEI. Store it in the IMEI field in Settings->Device form.

5. Setup server IP, port and network setting for your GSM network provider.
Command: <password>,A21,1,IP,Port,APN,APN username,APN password
Note: Replace APN,APN username,APN password with setting of your GSM network provider. If no password required, input APN name only.
Example: 0000,A21,1,184.106.76.45,8553,internet.eplus.de,eplus,gprs
The device will then reply an SMS (‘011691002088626,A21,OK’) to confirm this setting.

6. Set the period for data sending. If your device password is 0000, send following SMS:
0000,A12,6,0

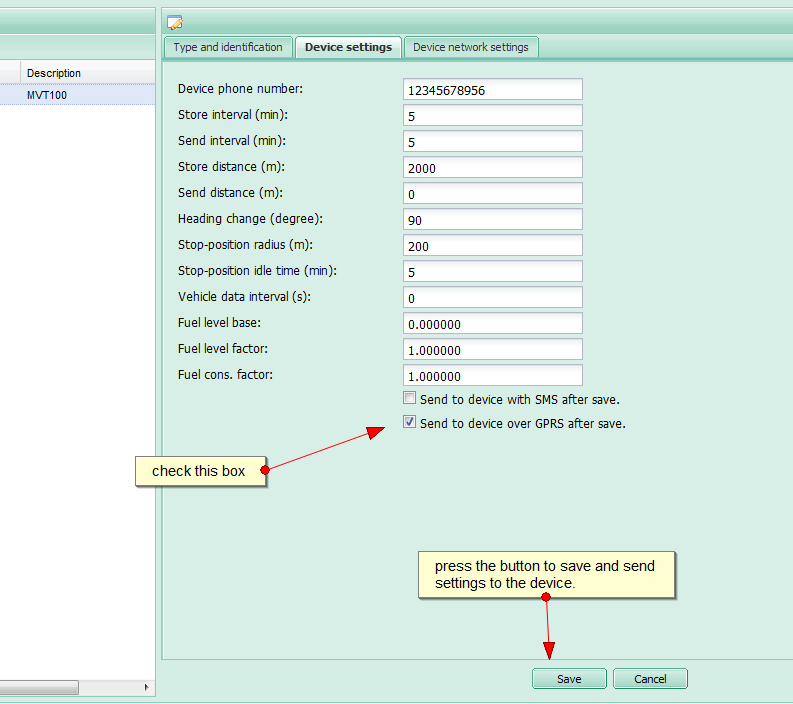

7. Wait 5 min after last SMS and send the rest of the settings to the device. First select the device and then modify the setting as on the screenshot. Check the box "Send to device over GPRS after save" and click on save button to store and send to device.

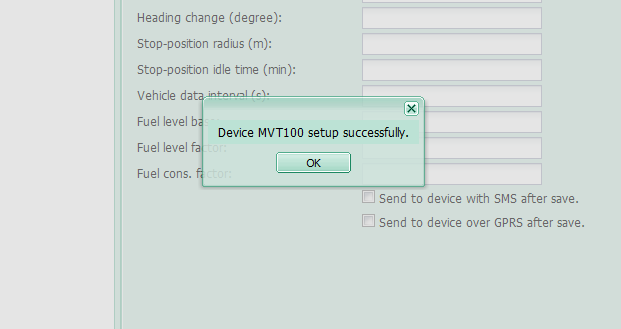

8. If the settings are successfully sent to the device you will see following message.
